Description
Developed in hospitals, pre-hospital, university and voluntary sectors, the Brayden Pro provides healthcare professionals with quantitative data-driven feedback.

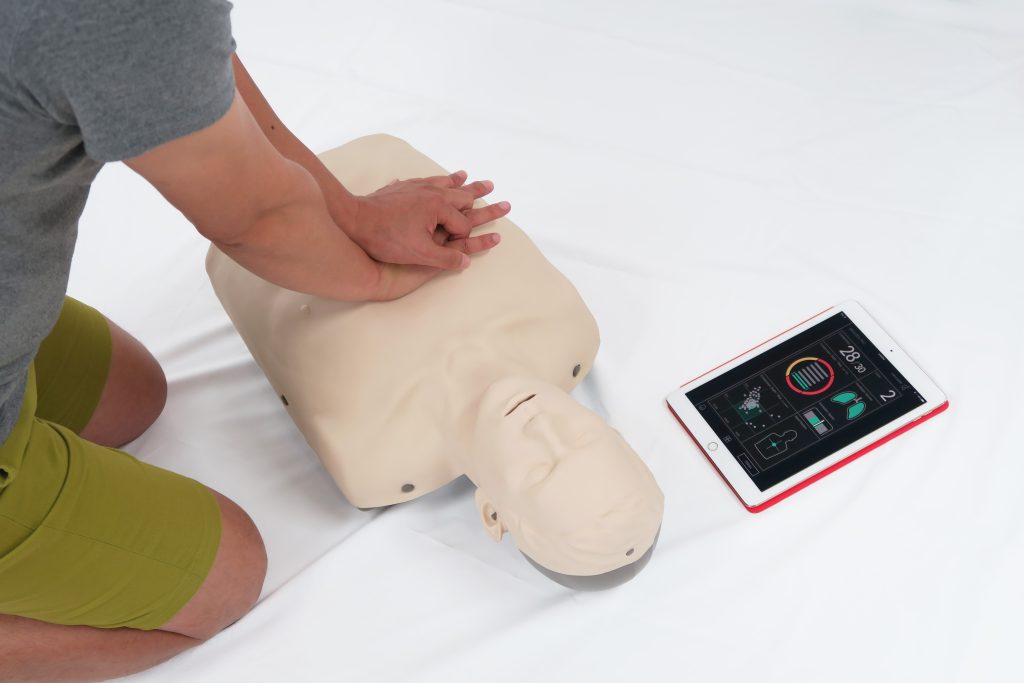

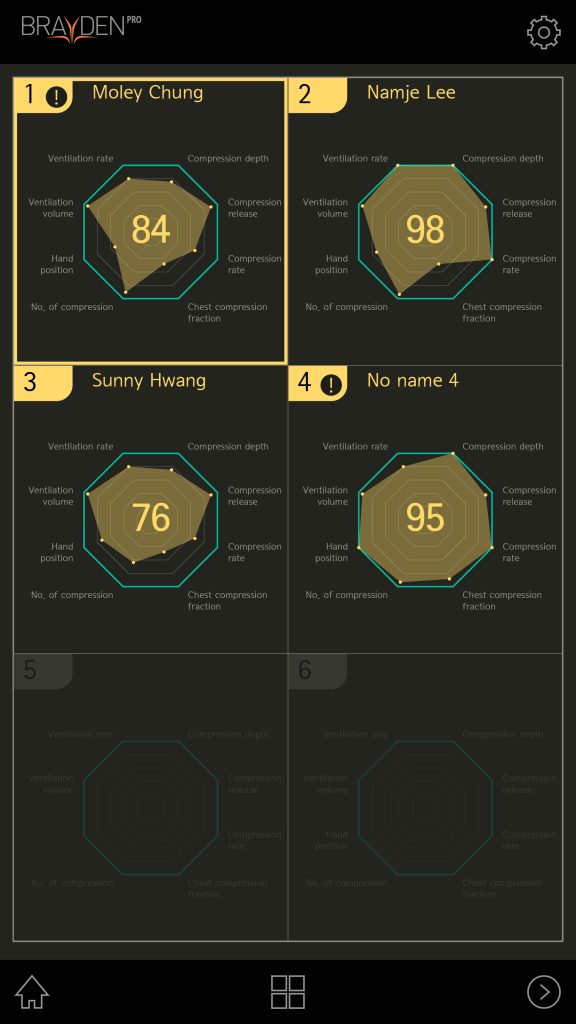

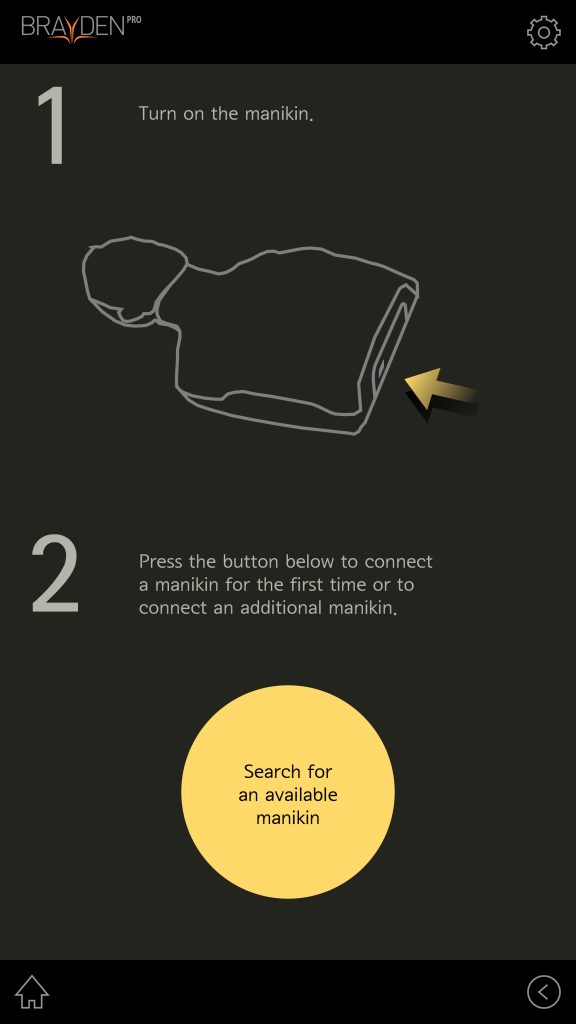

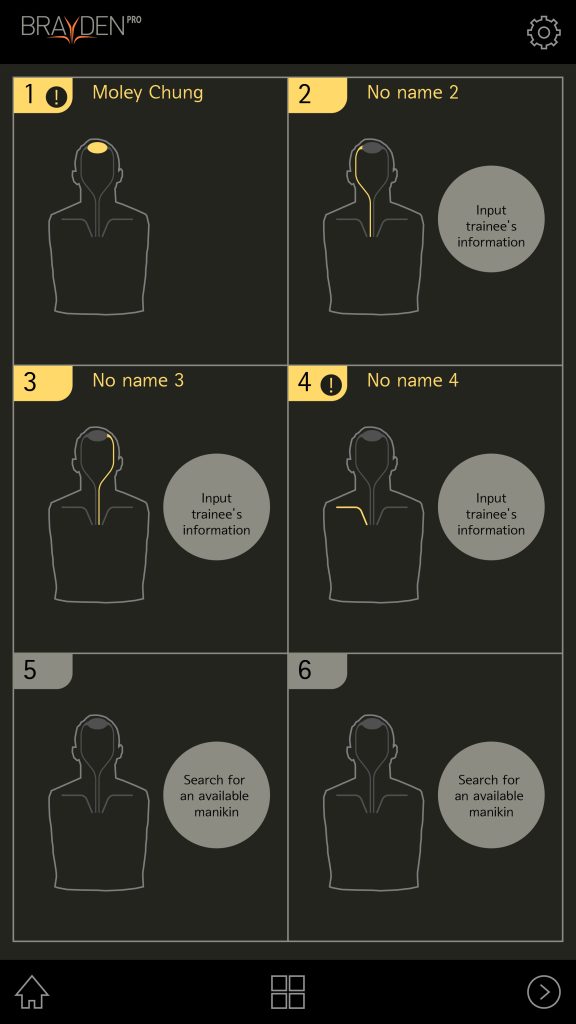

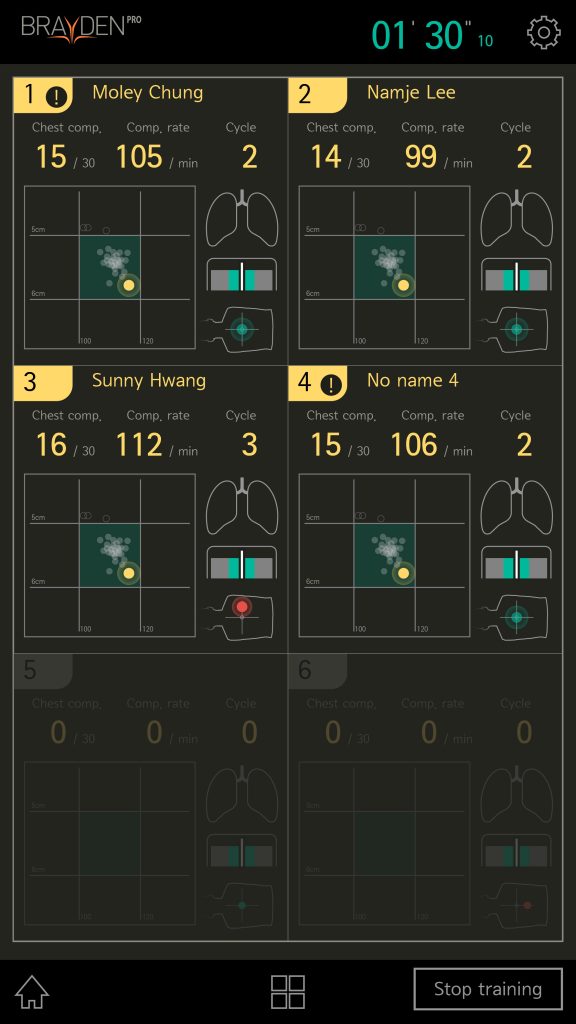

The Brayden Pro sends live data to the Brayden Pro App via Bluetooth to provide real-time feedback of CPR performance – this data can then be reviewed and analysed to improve the quality of CPR performance and provide a numeric, quantitative assessment. Up to 6 Brayden Pro’s can be connected to 1 device allowing for simultaneous training and assessment. Records can be stored and easily exported via Email for easy analysis on your Spreadsheet program.
Quantitative Data: Detailed CPR Performance Results
Brayden Pro provides multiple debriefing opportunities to help improve CPR performance, and real time feedback as CPR is being performed.

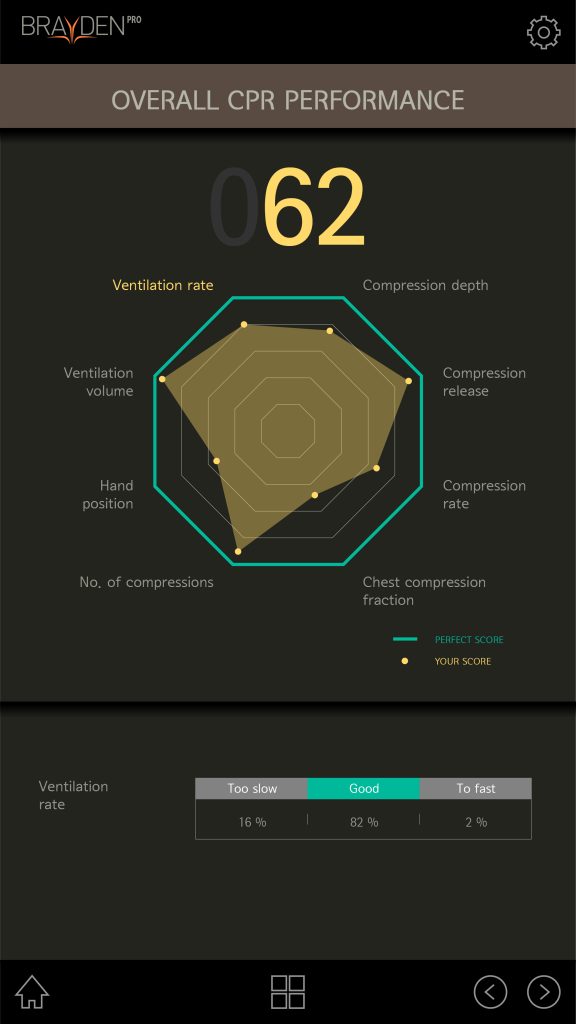

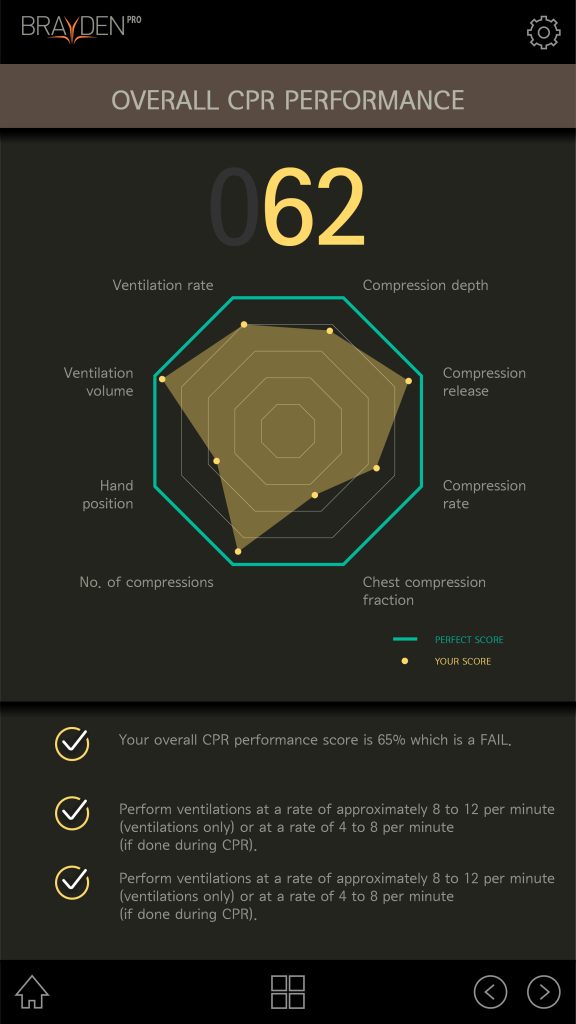

CPR PERFORMANCE REVIEW
Provides a numeric score and pictorial summary of each CPR parameter measured against a theoretical perfect score to highlight improvement needs.

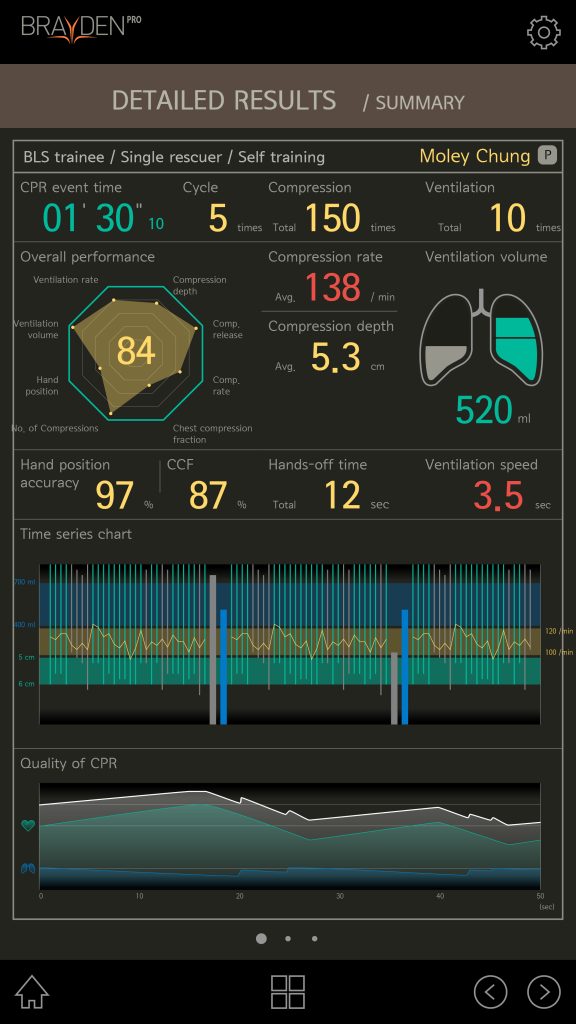

CPR IN-DEPTH ANALYSIS

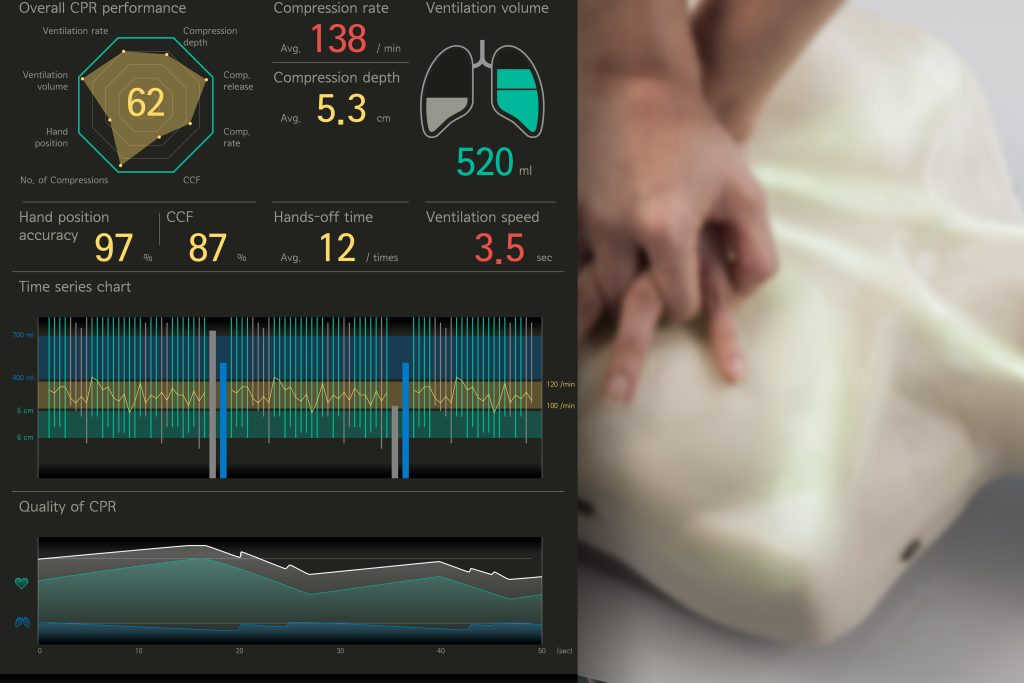

Presents detailed quantitative analysis for all relevant CPR metrics to provide an in-depth summary of performance.
Identifies performance over time and the associated effect on CPR quality.

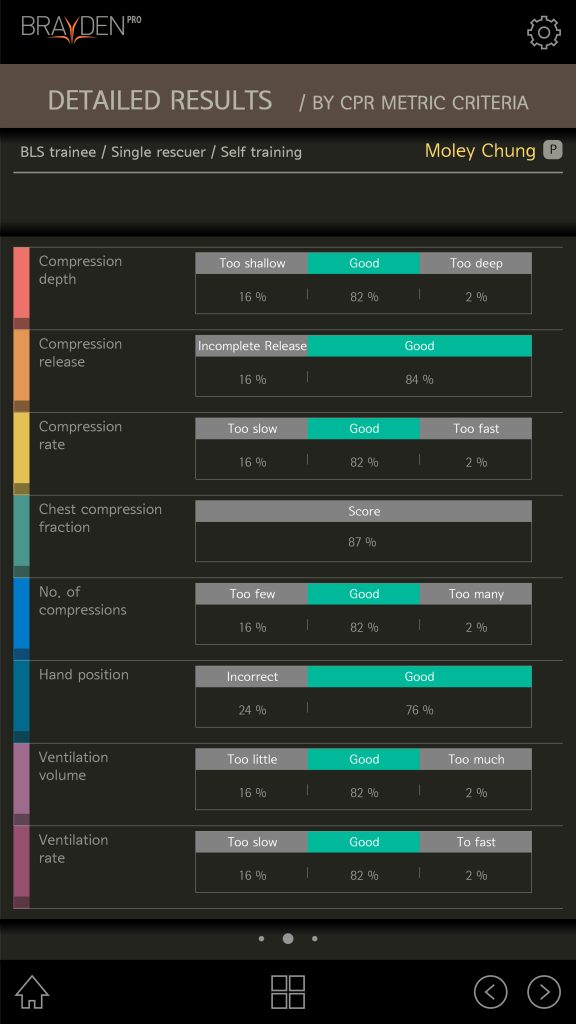

PERFORMANCE SUMMARY
Provides relevant information for each measured CPR parameter to help improve performance.

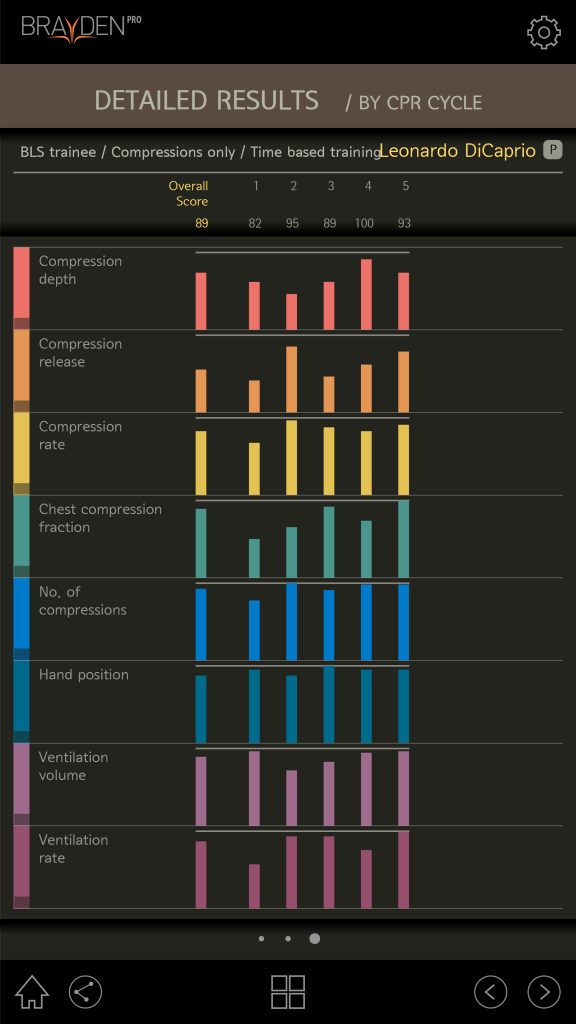

RESULTS BY CPR CYCLE
Provides an analysis of CPR performance for each measured CPR parameter for each cycle of CPR performed.
REAL-TIME CPR FEEDBACK
Detailed in-depth below, this mode provides shows exactly what is happening in real-time during CPR.

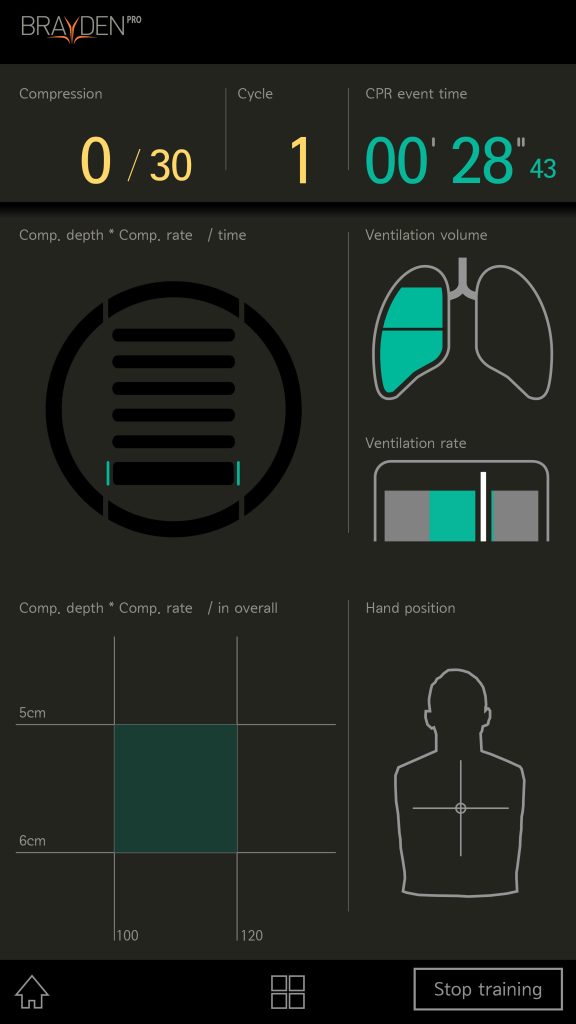

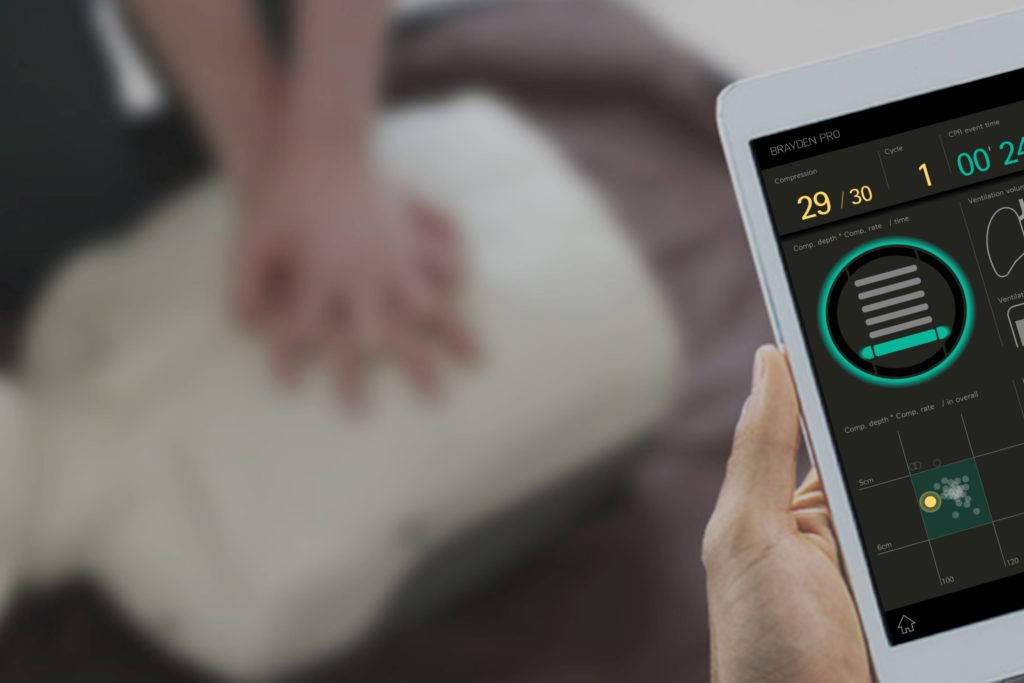

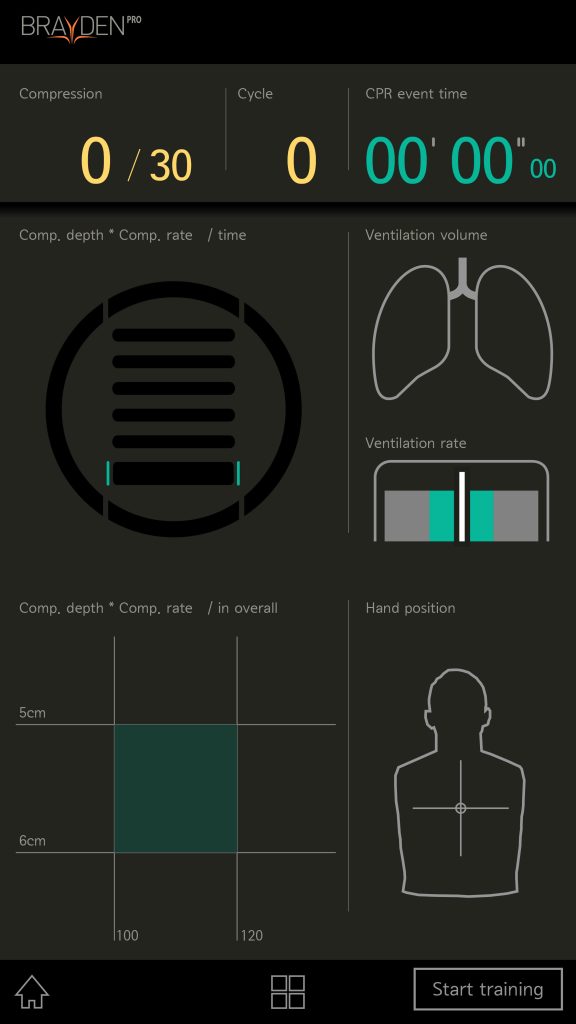

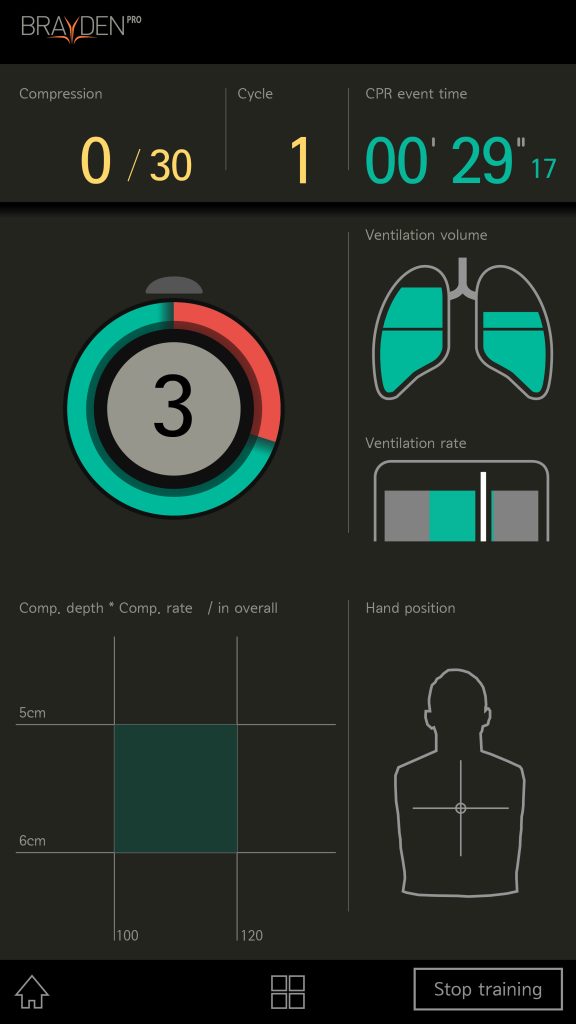

Real-time CPR feedback display:
When both compression rate and compression depth are correct, a green circle appears. The bottom bar illuminates green when chest compression depth is correct.
Circle Segment indicators:
- top – red when chest compression is not released properly.
- bottom – red when chest compression is too deep.
- left – yellow when chest compression rate is too slow.
- right – red when chest compression rate is too fast.
COMPRESSION DEPTH * COMPRESSION RATE / OVERALL
Allows all chest compressions per cycle to be viewed to encourage consistent and correct compressions.

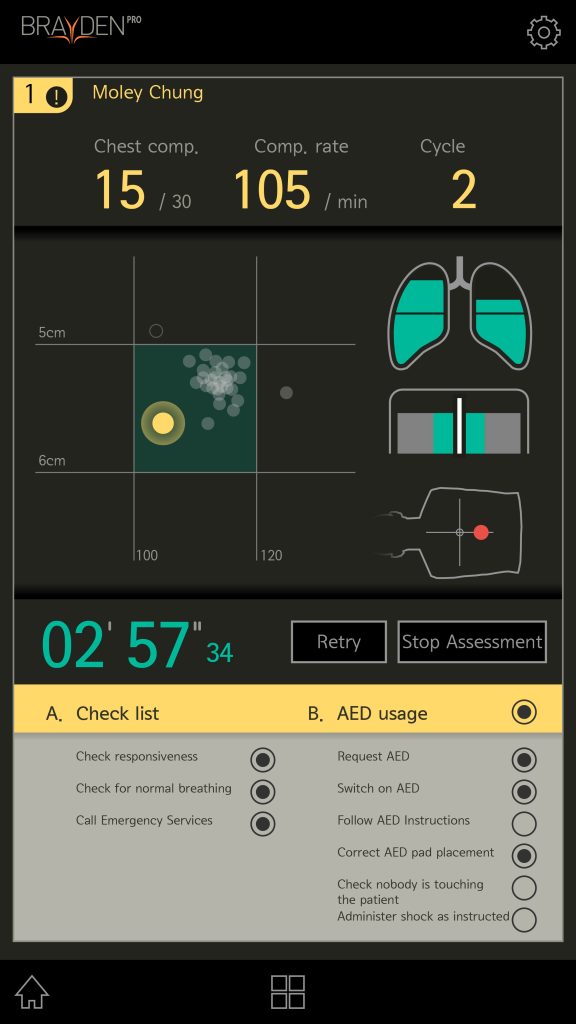

By plotting the Chest compression Depth Range (Y axis) against Chest Compression Rate Range (X axis) the accumulated chest compressions by cycle are displayed. The center square is the acceptable zone, with the consistency shown by well-grouped dots.
The recoil of compressions per cycle is displayed by indicators at the top of the graph.
VENTILATION VOLUME
Allows real-time feedback of ventilation performance with regard to the correct volume of air delivered.
Lung indicators:
- Insufficient Ventilation volume – the lungs partially fill with grey.
- Correct Ventilation volume – the lungs half filled with green.
- Excessive Ventilation volume – the lungs completely filled with red.
VENTILATION RATE
Provides real-time feedback of ventilation performance with regard to the correct rate of ventilations delivered.
HAND POSITION
Provides real-time feedback of hand position and provides a red-light indication when hand position is incorrect.

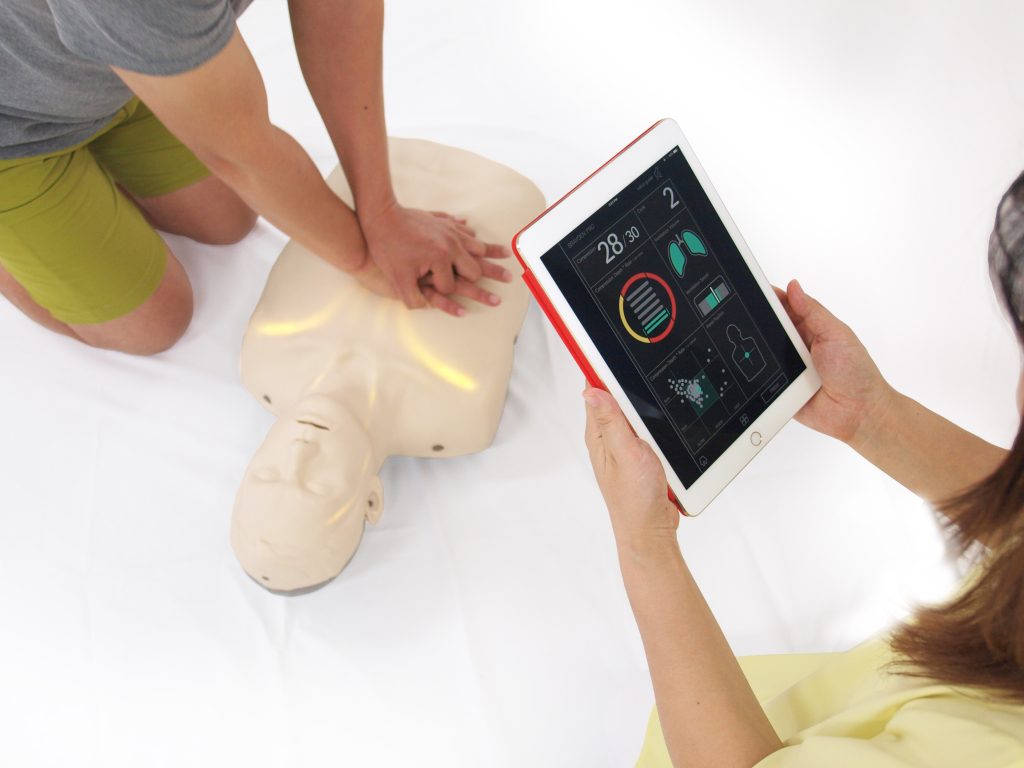

REAL-TIME BLOODFLOW LEDS BENEATH THE MANIKIN SKIN
These LEDs on the chest, neck and head of the Manikin represent the flow of blood from the heart towards the brain.
The LED illumination varies according to the depth, speed and recoil of compressions, only fully animating when CPR is being performed correctly within parameters.
Realistic & Hygienic airway and ventilation construction:
REALISTIC AIRFLOW
Head tilt and chin lift opens airways, with accurate Oral and Nasal passages and a realistic nose pinch.
Brayden Pro is compatible with Oxygen Masks and disposable CPR Face Shields.
HYGIENIC VENTILATION

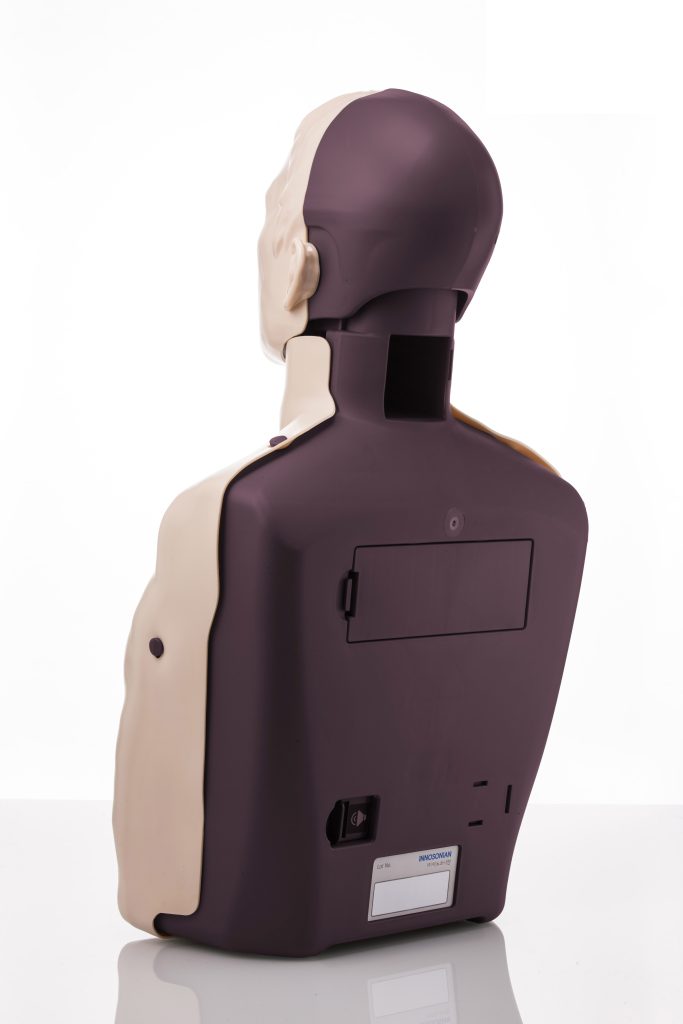

Air from Brayden Pro’s disposable lungs is vented through the back of his head, ensuring students never come into contact with exhaled air – reducing the risk of cross-contamination.

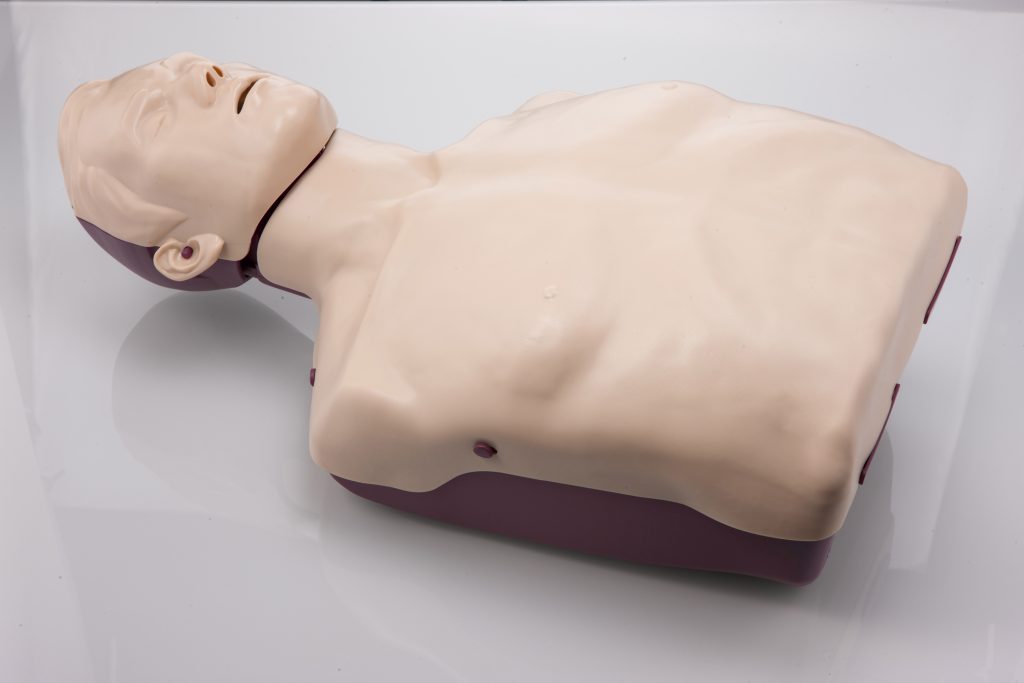

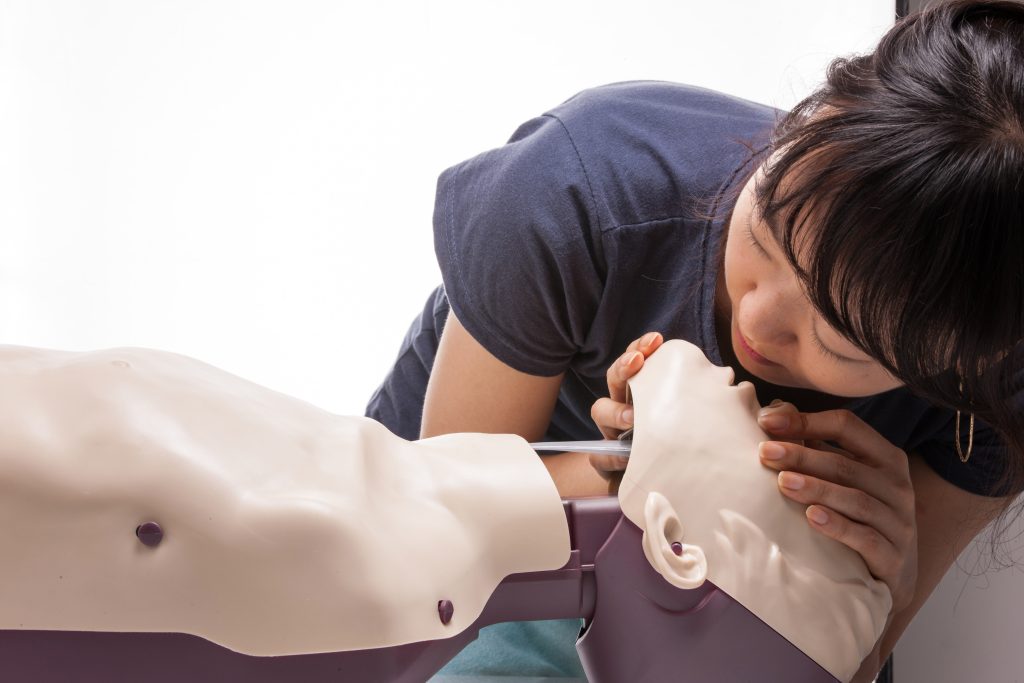

REALISTIC CHEST RISE AND LATEX-FREE SKIN
An anatomically correct chest that rises and falls realistically as air enters and leaves Braycen’s disposable lungs.
Harmless, latex-free skin is easy to clean – and defibrillator pads are easily removed. RoHS & REACH compliant.
